One of the most common questions I get is: “What’s the best battery for your handmade e-pipes?” If you’re new to e-pipes or just want to get the most out of your device, choosing the right battery is essential for both performance and safety.
Most of my e-pipe models use the 18350 Li-ion battery, a compact but powerful cell ideal for the classic e-pipe shape. While I’ve experimented with other battery types, in this article, I’ll focus exclusively on the 18350 battery—because it’s my personal favorite and the most common in my designs.
However, knowing the size alone isn’t enough. Let’s break down the key factors you should consider when choosing the best 18350 battery for your e-pipe.
1. Voltage
This one’s straightforward. All 18350 Li-ion cells have a nominal voltage of 3.7V, so there’s no need to worry about differences here. It’s a standard feature across the board.
2. Capacity (mAh)
Battery capacity determines how long your e-pipe will run before needing a recharge. Older 18350 cells often had capacities around 700mAh, but modern high-quality cells can reach up to 1200mAh. In general, higher capacity means longer battery life, which is ideal for casual and all-day use. However, this isn’t the only specification that matters.
3. Maximum Continuous Discharge Current (CDR)
This spec tells you how much current the battery can safely deliver without overheating. For example, if you’re using a 1-ohm coil with a fully charged 3.7V battery, the current draw will be around 4.2 amps. If you go for a lower resistance coil, the current requirement increases even more.
For safety and performance, I recommend choosing a battery with a minimum of 10A continuous discharge rating. This gives you headroom for various coil builds and ensures reliable power delivery.
4. Protected vs. Unprotected Batteries
Li-ion cells come in two variants: protected (with a built-in safety circuit) and unprotected (bare cell). For my e-pipes, I specifically design them to use unprotected 18350 cells. Why?
Because I build the protection circuit directly into the fire button of each e-pipe. This approach not only keeps the design compact and elegant but also ensures safety without needing a protected cell.
When choosing a battery, look for a flat-top, unprotected 18350 battery—this is what fits best and works reliably in my pipe mods.
Final Thoughts
To sum up, here’s what to look for in an ideal 18350 battery for your e-pipe:
- Size: 18350
- Voltage: 3.7V (standard)
- Capacity: 900–1200mAh
- Max Continuous Discharge: 10A or more
- Type: Unprotected, flat top
If you’re ever in doubt, feel free to reach out—I’m always happy to help my customers choose the right battery for their custom pipe.
Watch Out for Battery Thickness – It Matters More Than You Think
Here’s an important tip that one of my customers discovered: not all 18350 Li-ion rechargeable batteries are the same thickness. While the “18350” name suggests a diameter of exactly 18mm, in reality, some cells are slightly thicker—and that can cause problems.
My e-pipes have battery chambers carefully tuned for specific dimensions. If a battery is even slightly oversized, it might not fit properly. That’s why it’s important to choose cells that are known to be compatible with the design.
My Recommended 18350 Batteries for E-Pipes
To make your battery selection easier and ensure a perfect fit, I recommend two specific 18350 batteries that I’ve personally tested and used in my e-pipes for several years. Both offer reliable performance, excellent capacity, and perfect compatibility with my builds.

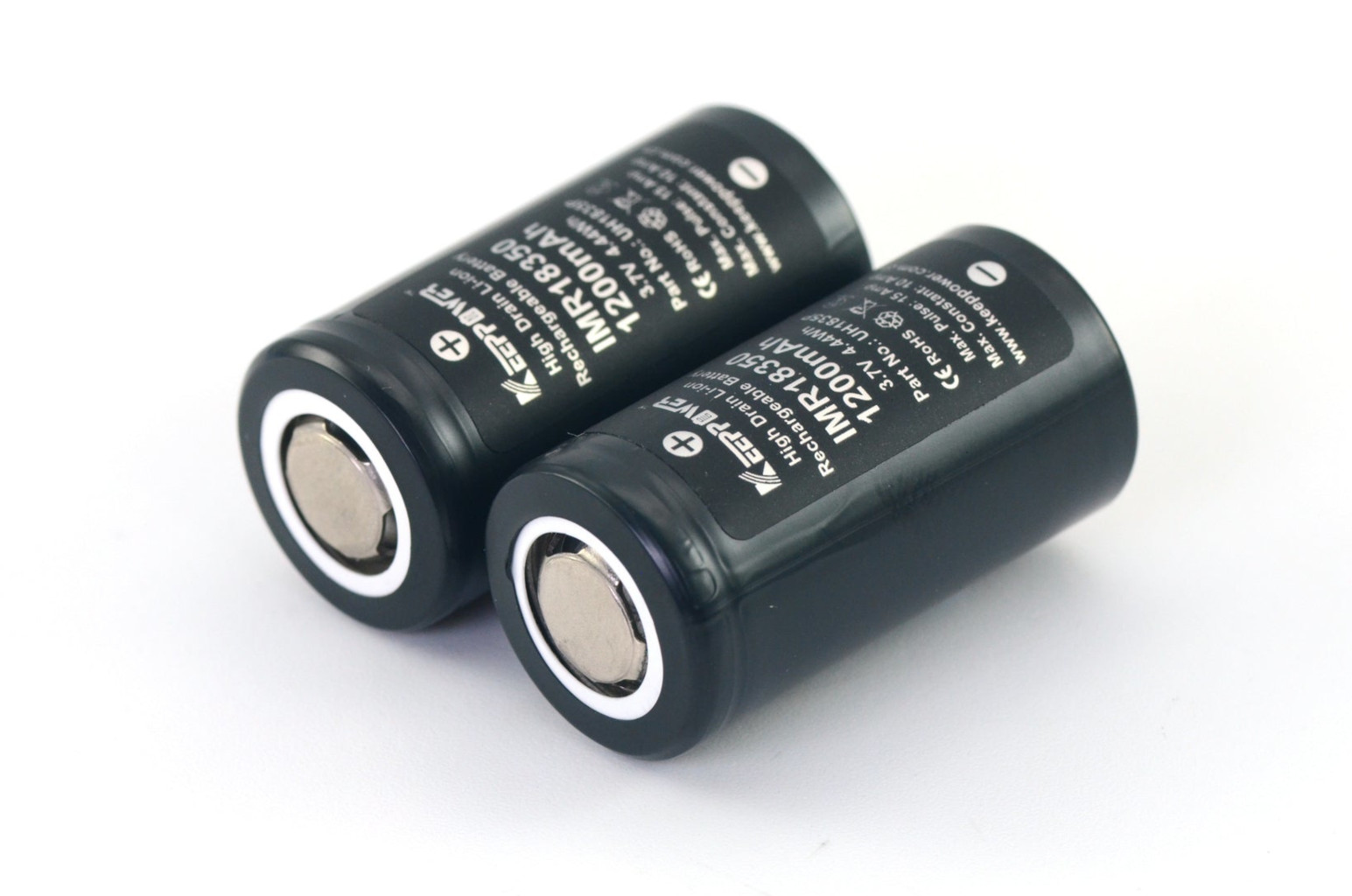

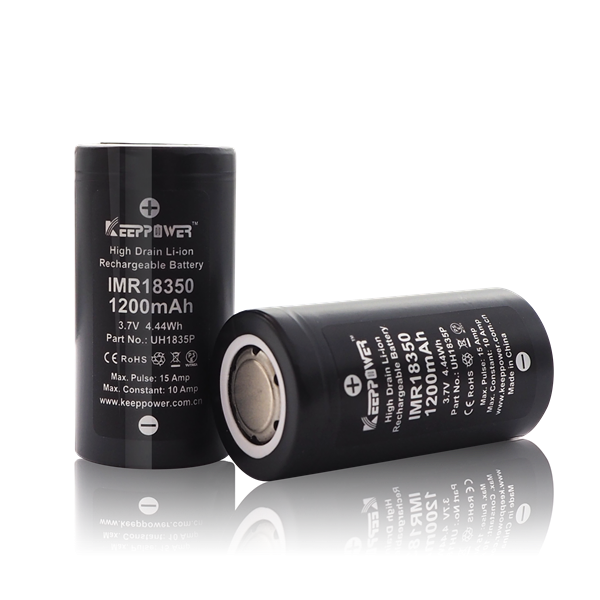

✅ Keeppower IMR18350 Li-ion Rechargeable Battery
Capacity: 1200mAh
Max Continuous Discharge: 10A
Flat top and unprotected, making it ideal for my e-pipes

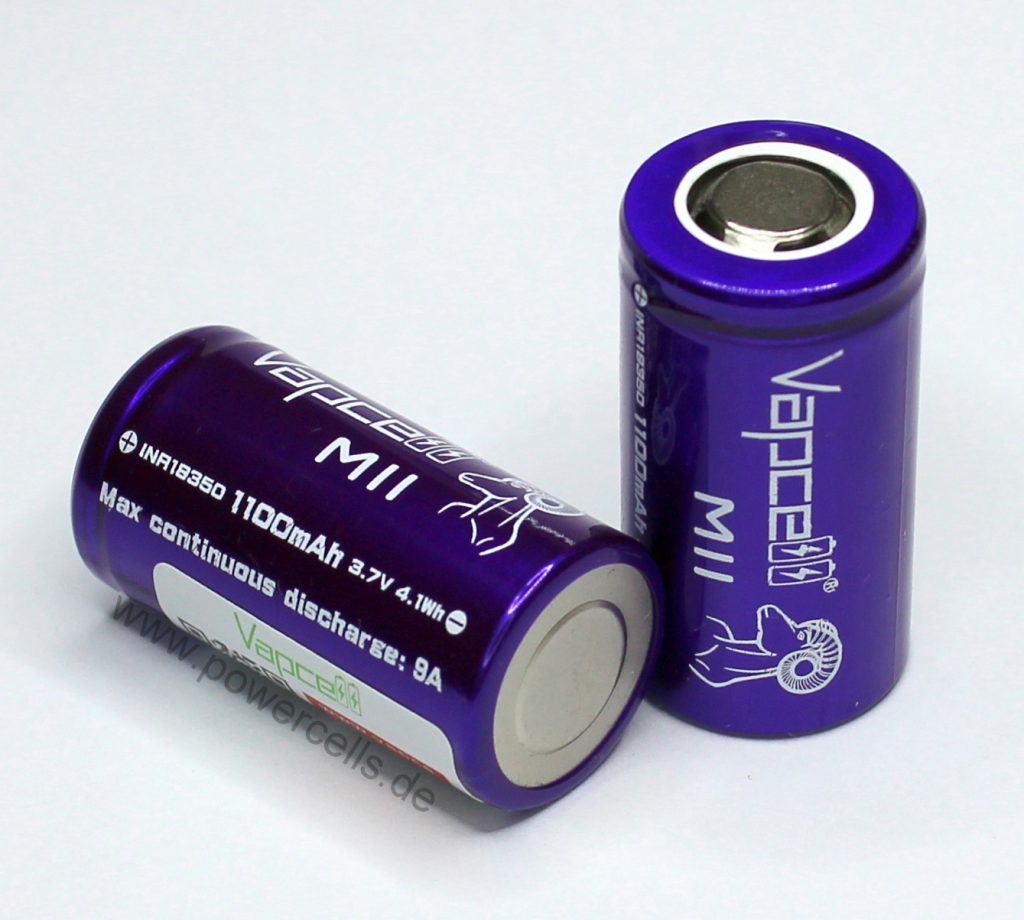

✅ Vapcell M11 V2.0 INR18350 Li-ion Rechargeable Battery
Capacity: 1100mAh
Max Continuous Discharge: 10A
Flat top and unprotected, fully compatible with my e-pipes
Both of these batteries strike the right balance between capacity, safety, and fit—making them ideal choices for anyone using my handmade e-pipes. If you’re unsure which one to pick, you can’t go wrong with either.
